Descrição
Modelo
PA de plástico
Descrição

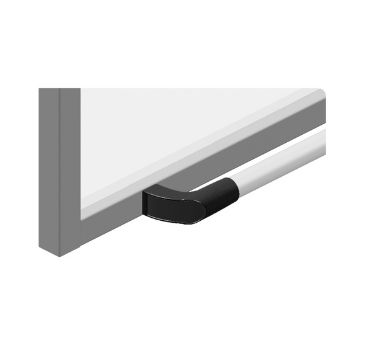

Para montar em portas, abas e perfis de alumínio
Material
Plástico PA, reforçado com fibra de vidro
Cor
Preto
Fixação
Pela frente com parafusos sextavados, por trás com parafusos e porcas M8 inseridas nas tampas
| Teil-Nr. |
for Screw
|
Pack Quantity
(0)
|
Part #
|
Version
|
Weight
(g)
|
Fig.
|
for Nut
|
a
(mm)
|
b
(mm)
|
A
(mm)
|
B
(mm)
|
D
(mm)
|
H
(mm)
|
|
| 092013 |
M8
|
10
|
092013
|

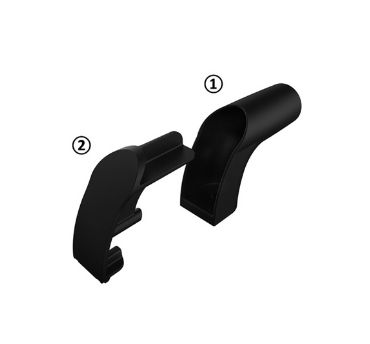

Set of end pieces D30*
|
49.5
|
–
|
–
|
–
|
–
|
–
|
–
|
–
|
–
|
|
| 092321 |
M8
|
–
|
092321
|
Set of end pieces D28*
|
52.5
|
–
|
–
|
–
|
–
|
–
|
–
|
–
|
–
|
|
| 092305 |
–
|
10
|
092305
|
Set of cover caps 200*
|
–
|
②
|
M8
|
Modelo
para combinar com as peças finais
Descrição
Para montar em portas, abas e perfis de alumínio
Material

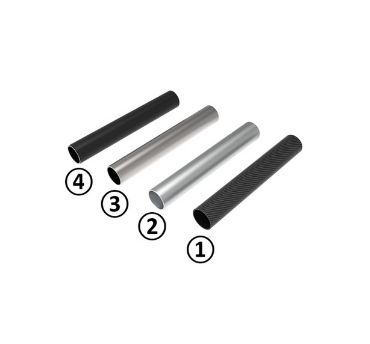

Fibra de carbono, alumínio, aço inoxidável, aço
Fixação
Terminais para alça do sistema
| Teil-Nr. |
Fig.
|
Pack Quantity
(0)
|
Part #
|
A
(mm)
|
B
(mm)
|
L
(mm)
|
Version
|
Weight
(g)
|
Customs tariff number
|
|
| 092013C200 |
①
|
10
|
092013C200
|
200.0
|
240.8
|
70.0
|
Carbon fiber, glossy finish
|
16.0
|
39172900990
|
|
| 092013C300 |
①
|
10
|
092013C300
|
300.0
|
340.8
|
170.0
|
Carbon fiber, glossy finish
|
39.0
|
39172900990
|
|
| 092013C400 |
①
|
10
|
092013C400
|
400.0
|
440.8
|
270.0
|
Carbon fiber, glossy finish
|
62.0
|
39172900990
|
|
| 092013C500 |
①
|
10
|
092013C500
|
500.0
|
540.8
|
370.0
|
Carbon fiber, glossy finish
|
85.0
|
39172900990
|
|
| 092013C.2000 |
①
|
1
|
092013C.2000
|
*2000.0
|
Carbon fiber, glossy finish
|
364.0
|
39172900990
|
|||
| 092013A200 |
②
|
10
|
092013A200
|
200.0
|
240.8
|
70.0
|
Aluminum, anodized
|
17.0
|
76082089900
|
|
| 092013A300 |
②
|
10
|
092013A300
|
300.0
|
340.8
|
170.0
|
Aluminum, anodized
|
–
|
76082089900
|
|
| 092013A400 |
②
|
10
|
092013A400
|
400.0
|
440.8
|
270.0
|
Aluminum, anodized
|
67.0
|
76082089900
|
|
| 092013A500 |
②
|
10
|
092013A500
|
500.0
|
540.8
|
370.0
|
Aluminum, anodized
|
91.0
|
76082089900
|
|
| 092013A.2000 |
②
|
20
|
092013A.2000
|
*2000.0
|
Aluminum, anodized
|
490.0
|
76082089900
|
|||
| 092013E200 |
③
|
10
|
092013E200
|
200.0
|
240.8
|
70.0
|
Stainless steel
|
51.0
|
73064020000
|
|
| 092013E300 |
③
|
10
|
092013E300
|
300.0
|
340.8
|
170.0
|
Stainless steel
|
124.0
|
73064020000
|
|
| 092013E400 |
③
|
10
|
092013E400
|
400.0
|
440.8
|
270.0
|
Stainless steel
|
197.0
|
73064020000
|
|
| 092013E500 |
③
|
10
|
092013E500
|
500.0
|
540.8
|
370.0
|
Stainless steel
|
270.0
|
73064020000
|
|
| 092013E.2000 |
③
|
1
|
092013E.2000
|
*2000.0
|
Stainless steel
|
1400.0
|
73063011000
|
|||
| 092013S200 |
④
|
10
|
092013S200
|
200.0
|
240.8
|
70.0
|
Steel, plastic covered
|
53.0
|
73043180990
|
|
| 092013S300 |
④
|
10
|
092013S300
|
300.0
|
340.8
|
170.0
|
Steel, plastic covered
|
120.0
|
73043180990
|
|
| 092013S400 |
④
|
10
|
092013S400
|
400.0
|
440.8
|
270.0
|
Steel, plastic covered
|
203.0
|
73063077900
|
|
| 092013S500 |
④
|
10
|
092013S500
|
500.0
|
540.8
|
370.0
|
Steel, plastic covered
|
279.0
|
73063077900
|
|
| 092013S.2000 |
④
|
1
|
092013S.2000
|
*2000.0
|
Steel, plastic covered
|
1500.0
|
73063011000
|
